Home » Fill-Rite FR310VN Fuel Transfer Pump Only - Bung Mount - 240V AC, 132 Lpm
Fill-Rite FR310VN - 115/230V AC, 132 Lpm, Fuel Transfer Pump
Fill-Rite Shop

Fill-Rite FR310VN Fuel Transfer Pump Only - Bung Mount - 240V AC, 132 Lpm

In stock
SKU: FR310VN
$3,586.00
Options

Product details

  • Type AC Fuel Transfer Pump
  • Vendor Fill-Rite Shop
  • SKU FR310VN

Do you have questions about this product? Fill out the Request more Information form, or contact us directly. We are on standby to help you!

Contact us

Description

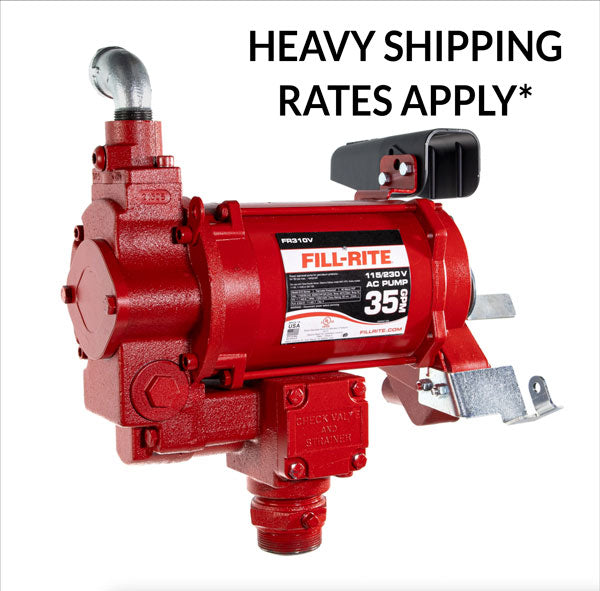

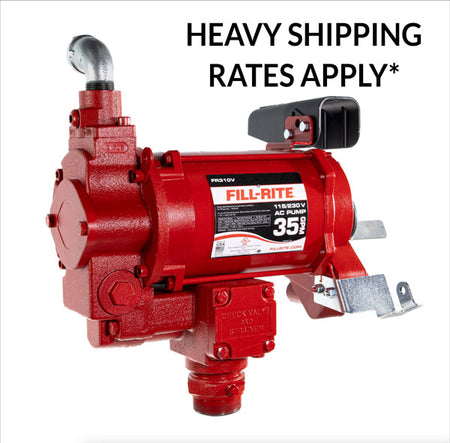

The FR310VN model is a 240V AC, 132 Lpm, heavy-duty fuel transfer pump.

Fill-Rite's 300 Series of heavy-duty fuel transfer pumps features 240V AC dual voltage power input and are built to last with cast-iron construction.

This model includes installation components and no additional accessories.

  • Cast-Iron Construction — heavy-duty, cast-iron construction provides unmatched durability, withstanding the harshest conditions out in the field or at the job site
  • High Performance — Fill-Rite’s trusted rotary vane pump technology delivers 132.5L per minute, perfect for filling your largest equipment with fuel tanks sized at 132.5-530+ litres
  • Dual Voltage Motor — powered by a dual voltage 115-230V AC motor, you can conveniently select the right voltage during installation with a simple switch
  • Stationary Tanks — Equipped with a 50.8mm bung mount, this pump is ideal for installing onto stationary aboveground tanks
  • Fluid Compatibility — designed for daily use with diesel fuel, kerosene, mineral spirits, Stoddard solvents, heptane, and biodiesel blends up to B20
  • Reliable Technology — rotary vane technology naturally maintains its day one performance levels as it wears down from normal use, allowing for consistent performance over the entire life of the pump
  • Long Life — thermally-protected motor prevents overheating, ensuring your pump performs for years without worry
  • Equipment Safeguard — built-in mesh strainer filters out particulates in fuel, preventing damage to your equipment
  • Limited Lifetime Warranty — we stand behind our product with an industry-leading Limited Lifetime Warranty to protect your investment

You work through all kinds of conditions, so why shouldn’t your fuel transfer pump? For over 60 years, Fill-Rite has set the standard for reliable fuel transfer pumps, meters, and accessories. Our customers recognise Fill-Rite for its durability and years of elite performance in the field. Proudly made in the USA with global materials, Fill-Rite equipment is constructed with heavy-duty materials to withstand rugged everyday use, extreme weather exposure, and both on and off-road applications. Fill-Rite is supported by a wide network of distributors and retailers, ensuring you will always be able to find replacement parts and rebuild kits for your fuel transfer equipment.

  • Max Flowrate: 132 Lpm
  • Power Type: 240V AC
  • Compatible Fluids: Diesel, Kerosene, Biodiesel up to B20
  • Inlet Size / Connection / Thread: 31.75mm / Female / NPT
  • Outlet Size / Connection / Thread: 25.4mm / Female / NPT
  • Mounting Size / Thread / Type: 50.8mm / NPT / Bung Mount
  • Duty Cycle (min): 30 min on / 30 min off
  • Motor Power (HP): 0.75
  • Suction Lift (mm): 5486.4
  • Dry Vacuum (mm Hg): 355.6mm
  • Discharge Head (mm): 18288
  • Strainer Mesh Size (Micron): 1016 x 1016 x 0.20mm
  • Max Discharge Pressure (PSI): 26 PSI

  • Assembled Product Height x Width x Depth (mm): 441.9 x 431.8 x 375.9
  • Assembled Product Weight (kg): 29.8
  • Package Height x Width x Depth (mm): 311.1 x 566.6 x 501.6
  • Gross Weight (kg): 33.8

Fill-Rite FR300-Series Operational Manual

Fill-Rite FR300 Series - Fuel Transfer Pump Installation
