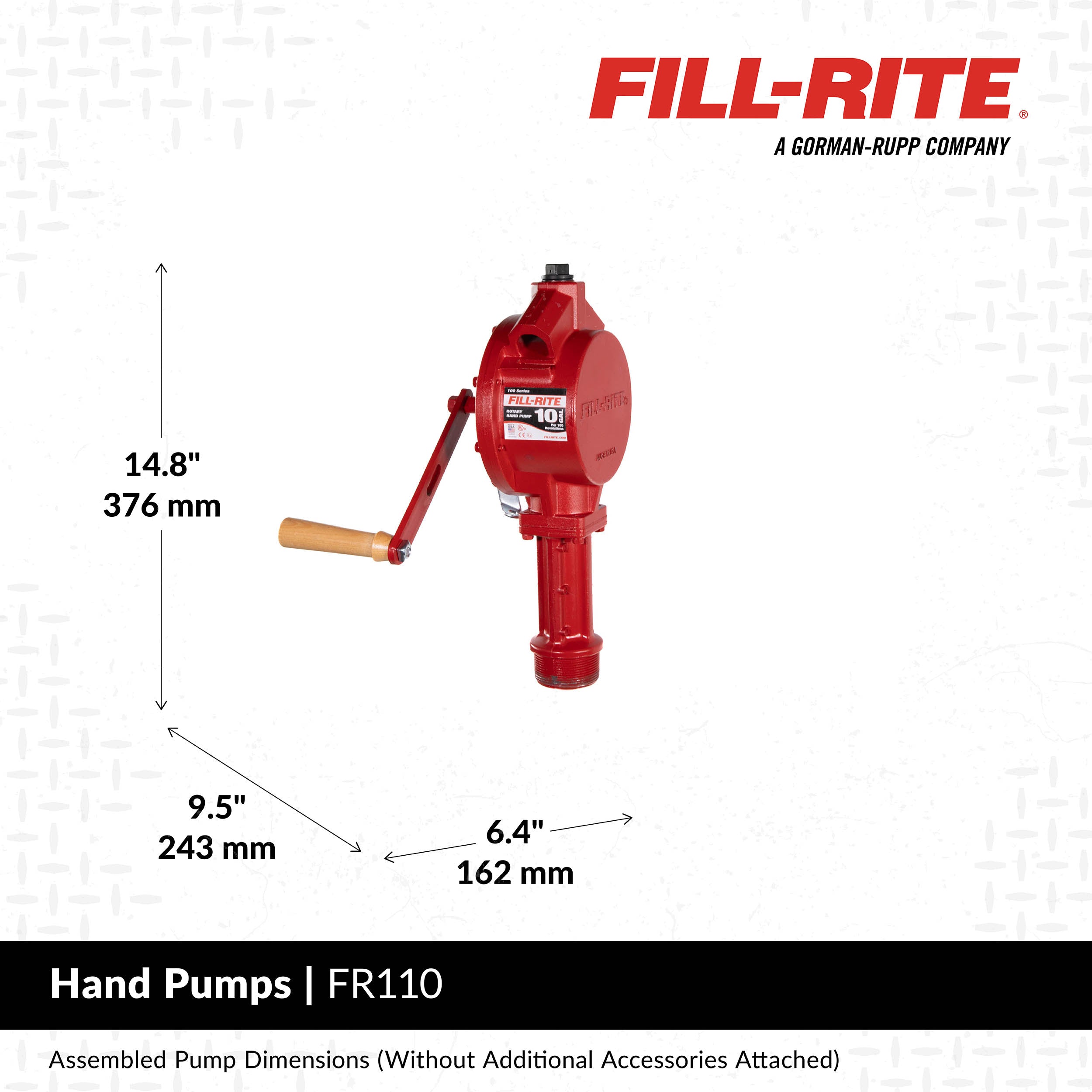

Fill-Rite FR110 - Rotary Hand-Operated Fuel Transfer Pump Only – Dimensions
Fill-Rite FR110 - Rotary Hand-Operated Fuel Transfer Pump Only
Fill-Rite FR110 - Rotary Hand-Operated Fuel Transfer Pump Only - from PETRO Industrial
Fill-Rite FR110 - Rotary Hand-Operated Fuel Transfer Pump Only – Dimensions
Fill-Rite Shop

Fill-Rite FR110 - Rotary Hand-Operated Fuel Transfer Pump Only

In stock
SKU: FR110
$552.00
$649.00 Sale $552.00
 More payment options

Product details

  • Type Hand-operated Pumps
  • Vendor Fill-Rite Shop
  • SKU FR110

Do you have questions about this product? Fill out the Request more Information form, or contact us directly. We are on standby to help you!

Contact us

Description

Fill-Rite's Rotary Hand-Operated Fuel Transfer Pump Series is engineered to deliver reliable and consistent performance, making it an excellent choice for low-volume fuel transfer applications. These pumps are specifically designed to handle demanding conditions, providing a durable and efficient solution for rugged environments where power sources may not be readily available.

Ideal for use in remote locations, construction sites, farms, and other settings requiring manual fuel transfer, these rotary pumps offer a practical and dependable option. Their robust construction ensures long-lasting durability, even under heavy-duty use. The hand-operated mechanism allows for precise control over fuel flow, enabling users to transfer fuel with accuracy and ease.

The series is built to withstand harsh weather conditions and resist wear from regular use, ensuring continued performance over time. Whether transferring fuel from drums, tanks, or other containers, Fill-Rite’s Rotary Hand-Operated Pumps provide a simple, effective, and low-maintenance solution for various fuel transfer needs in tough environments.

  • Cast-Aluminum Construction — built to last with rugged cast-aluminum construction, designed for maximum durability and lifetime corrosion resistance
  • Flexible Fueling — reversible flow design allows you to use your pump for fueling and draining vehicle fuel tanks
  • No Electricity Needed — ideal for low-volume applications where access to power is not available or required, allowing for stationary use or complete mobility
  • Theft Prevention — padlock-compatible handle adds security to protect your investment
  • Prevents Spillage — included discharge nozzle storage and anti-siphon technology prevent accidental fuel spillage, eliminating mess enhancing safety
  • Protects Equipment — included strainer keeps large particulate contaminants out of your equipment
  • Fluid Compatibility — designed for daily use with gasoline, diesel, heptane, kerosene, Stoddard solvents, light oils, and mineral spirits

You work through all kinds of conditions, so why shouldn’t your fuel transfer pump? For over 60 years, Fill-Rite has set the standard for reliable fuel transfer pumps, meters, and accessories. Our customers recognize Fill-Rite for its durability and years of elite performance in the field. Proudly made in the USA with global materials, Fill-Rite equipment is constructed with heavy-duty materials to withstand rugged everyday use, extreme weather exposure, and both on and off-road applications. Fill-Rite is supported by a wide network of distributors and retailers, ensuring you will always be able to find replacement parts and rebuild kits for your fuel transfer equipment.

  • Max Flowrate: 37.8 Liters Per 100 Revolutions
  • Power Type: Hand-Operated
  • Compatible Fluids: Diesel, Gasoline, Kerosene, Mineral Spirits, Heptane, Stoddard Solvents
  • Inlet Size / Connection / Thread: 25.4mm / Female / NPT
  • Outlet Size / Connection / Thread: 19.05mm / Female / NPT
  • Mounting Size / Thread / Type: 50.8mm / NPT / Bung Mount
  • Duty Cycle (min): Continuous Duty

  • Assembled Product Height x Width x Depth (mm): 381 x 165.1 x 228.6
  • Assembled Product Weight (kg): 4.3
  • Package Height x Width x Depth (mm): 166.6 x 330.2 x 397
  • Gross Weight (kg.): 4.8

FR100 SERIES Rotary Hand Pump Manual

FR100 SERIES Hand Pump Sales Flyer

FR110 Rotary Hand Pump
