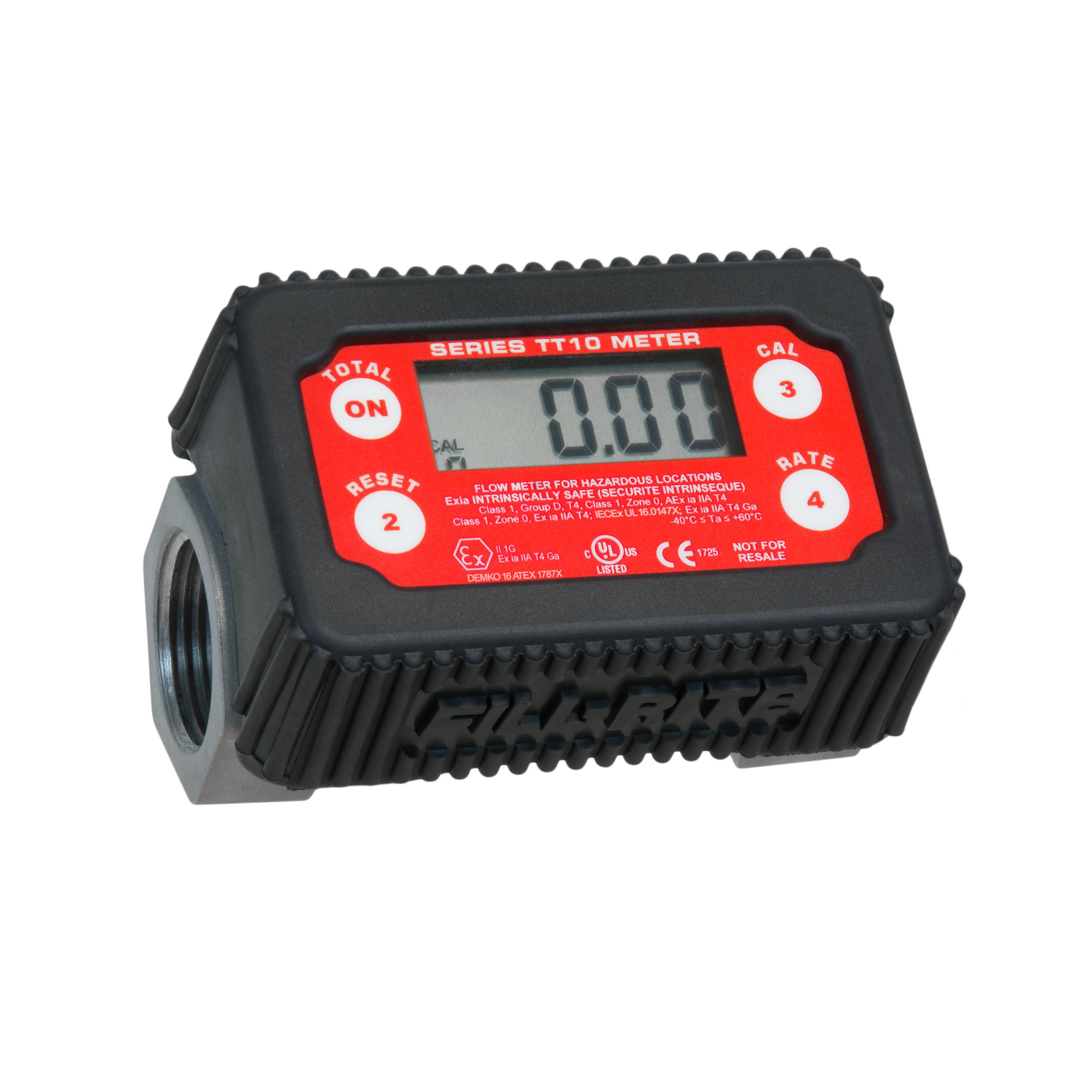

Fill-Rite 8-132 LPM 4-Digit Digital Fuel Transfer Meter - ATEX Certified

In stock
SKU: TT10AN
$604.00

Product details

  • Type Digital Meter
  • Vendor Fill-Rite Shop
  • SKU TT10AN

Do you have questions about this product? Fill out the Request more Information form, or contact us directly. We are on standby to help you!

Contact us

Description

Fill-Rite's TT10 Series of digital fuel transfer meters are extremely accurate, durable, and can be installed both in-line at the nozzle or mounted directly at the pump.

The TT10AN is a 4-digit digital fuel transfer meter. This meter is equipped with NPT threads and is designed to register 2-35 gallons per minute at +/-1% accuracy. This meter bundle includes (2) 0.75" reducer bushings.

ATEX Certified

  • Versatile Construction – models available in aluminum, polypropylene, and nickel-plated aluminum for varying fluid compatibility
  • Extreme Accuracy – measures fluids within +/- 1% accuracy, ensuring your record-keeping is precise as possible
  • Flexible Use – in-line design allows for installation at the pump or at the end of the discharge hose, with an LCD display that rotates 180° for your convenience
  • Complete Customization – track fluids in any user-created unit in addition to preset measurements like gallons, litres, ounces, pints, and quarts
  • Ready Out of Box – factory calibrated for over 20 different fluids makes installation quick, saving you time and eliminating frustration
  • Impact Resistant – external rubber boot provides maximum protection and impact resistance for tougher applications
  • Lifetime Tracking – non-resettable counter tracks total volume transferred over lifetime of meter, even if batteries are replaced

You work through all kinds of conditions, so why shouldn’t your fuel transfer pump? For over 60 years, Fill-Rite has set the standard for reliable fuel transfer pumps, meters, and accessories. Our customers recognize Fill-Rite for its durability and years of elite performance in the field. Proudly made in the USA with global materials, Fill-Rite equipment is constructed with heavy-duty materials to withstand rugged everyday use, extreme weather exposure, and both on and off-road applications. Fill-Rite is supported by a wide network of distributors and retailers, ensuring you will always be able to find replacement parts and rebuild kits for your fuel transfer equipment.

  • Flowrate Range – 8-132 LPM
  • Power Type –
  • Compatible – FluidsDiesel, Gasoline, Kerosene, Mineral Spirits, Heptane
  • Inlet Size / Connection / Thread – 1 " / Female / NPT
  • Outlet Size / Connection / Thread – 1 " / Female / NPT
  • Operating Temperature Range – (°F)-40 - 140°F / -40 - 60°C
  • Max Operating Pressure – (PSI)50
  • Accuracy – (+/- %)1 %
  • Repeatability – (+/- %)0.3 %
  • Display Type – LCD
  • Display Digits – 4
  • Pulse Rate –
  • Power Source – Electrical
  • Totalizer – Yes
  • Pulse Output – No

  • Assembled Product Height x Width x Depth (in.) – 2.5 x 4 x 3
  • Assembled Product Weight (lbs.) – 1.3
  • Package Height x Width x Depth (in.) – 7.4 x 6.2 x 3
  • Gross Weight (kg) – 0.58

Installation and Operation

Flyer

TT10 Digital Flow Meter
